Hydraulic earth auger soil drilling
Product description
Earth and clay drilling (Complete with Earth Teeth and Earth Pilot)
Diameter: 100mm, 150mm, 200mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm, 750mm, 900mm etc
|
Technical Specification of Auger Drill |
|||||||
| Type | Unit | KA2500 | KA3000 | KA3500 | KA4000 | KA6000 | KA8000 |
| Suitable Excavator | T | 1.5-3T | 2-4T | 2.5-4.5T | 3-5T | 4.5-6T | 5-7T |
| Torque | Nm | 790-2593 | 1094-3195 | 1374-3578 | 1710-4117 | 2570-6917 | 3163-8786 |
| Pressure | Bar | 70-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-240 |
| Flow | Lpm | 25-65 | 25-70 | 40-80 | 50-92 | 40-89 | 48-110 |
| Rotate Speed | Rpm | 36-88 | 30-82 | 35-75 | 35-68 | 20-46 | 20-45 |
| Output Shaft | mm | 65Rnd | 65Rnd | 65Rnd | 65Rnd | 75Sq | 75Sq |
| Weight | Kg | 95 | 100 | 105 | 110 | 105 | 110 |
| Max Auger Diameter Clay/Shale | mm | 300 | 300 | 350 | 350 | 500 | 600 |
| Max Auger Diameter Earth | mm | 350 | 400 | 450 | 500 | 600 | 800 |
|
Technical Specification of Auger Drill |
|||||||
| Type | Unit | KA9000 | KA15000 | KA20000 | KA25000 | KA30000 | KA59000 |
| Suitable Excavator | T | 6-8T | 10-15T | 12-17T | 15-22T | 17-25T | 20-35T |
| Torque | Nm | 3854-9961 | 5307-15967 | 6715-20998 | 8314-25768 | 15669-30393 | 27198-59403 |
| Pressure | Bar | 80-240 | 80-260 | 80-260 | 80-260 | 80-260 | 160-350 |
| Flow | Lpm | 70-150 | 80-170 | 80-170 | 80-170 | 80-170 | 100-250 |
| Rotate Speed | Rpm | 23-48 | 23-48 | 15-32 | 12-26 | 12-21 | 10-22 |
| Output Shaft | mm | 75Sq | 75Sq | 75Sq | 75Sq | 75Sq | 110Sq |
| Weight | Kg | 115 | 192 | 200 | 288 | 298 | 721 |
| Max Auger Diameter Clay/Shale | mm | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
| Max Auger Diameter Earth | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 |
Product details

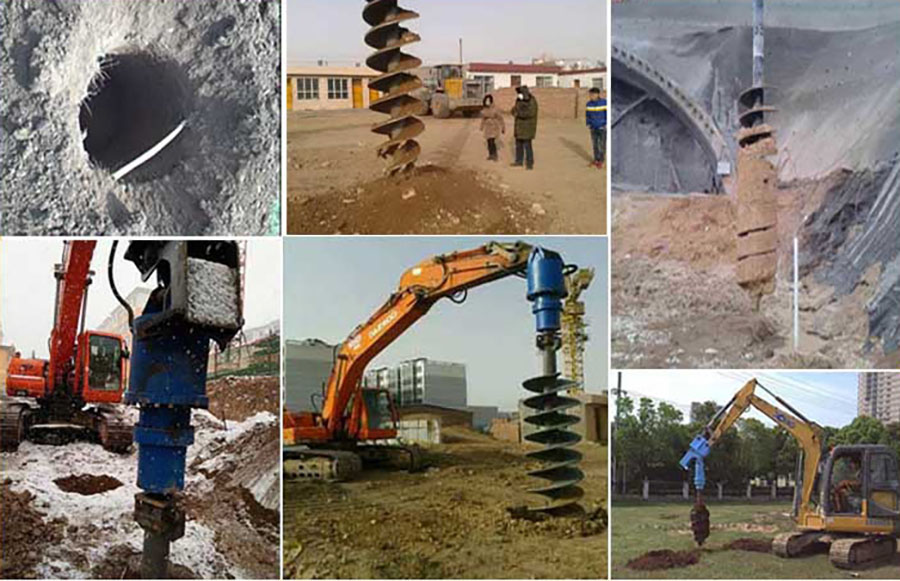

Construction photos
Product advantage
Hose & Couple options
All earth drills come standard with high quality hoses and couples (excludes large units).
Epicyclic gearbox
Torque is amplified by using the unique auger torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
Non-dislodgement shaft Unique to Auger Torque, the non-dislodgement shaft is a single piece drive shaft assembled top down and locked into the earth drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers a Must-Have Feature for any safety conscious company.
Packing & Shipping
FAQ
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
